AR Series Switch Panel with App Control
SKU:
QP010785: In stock
Regular price Rs 31,999.00

-
- 8-Gang one-sided outlet switch panel. It allows you to control up to 8 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
- 2 control methods - Switch panel & Bluetooth APP, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.
- 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes: RED-Toggle, Constant light mode (Great for things like fog lights or driving, BLUE-Momentary, Press & hold the button to turn on, then release the button o turn off, just like pressing the horn button and GREEN-Pulsed, Flash mode. Press the switch once and the device will flash on/flash off, continuing until the switch is pressed again.
- RGB backlight color. Adjust backlight color and brightness to match your vehicle.
- Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
- Assign each switch a logo (60 universal stickers to choose from). Use the provided switch labels to indicate what’s connected to that switch.
- DIY button icon on APP. 200 default icons or use your own photos from the phone album.
- Setup group. Manage multiple accessories in your custom groups. Assign 2 or more accessories to the same switch button and then control them at the same time.
- Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
- Waterproof IP65, high sensitivity, stability and strong anti-interference ability.

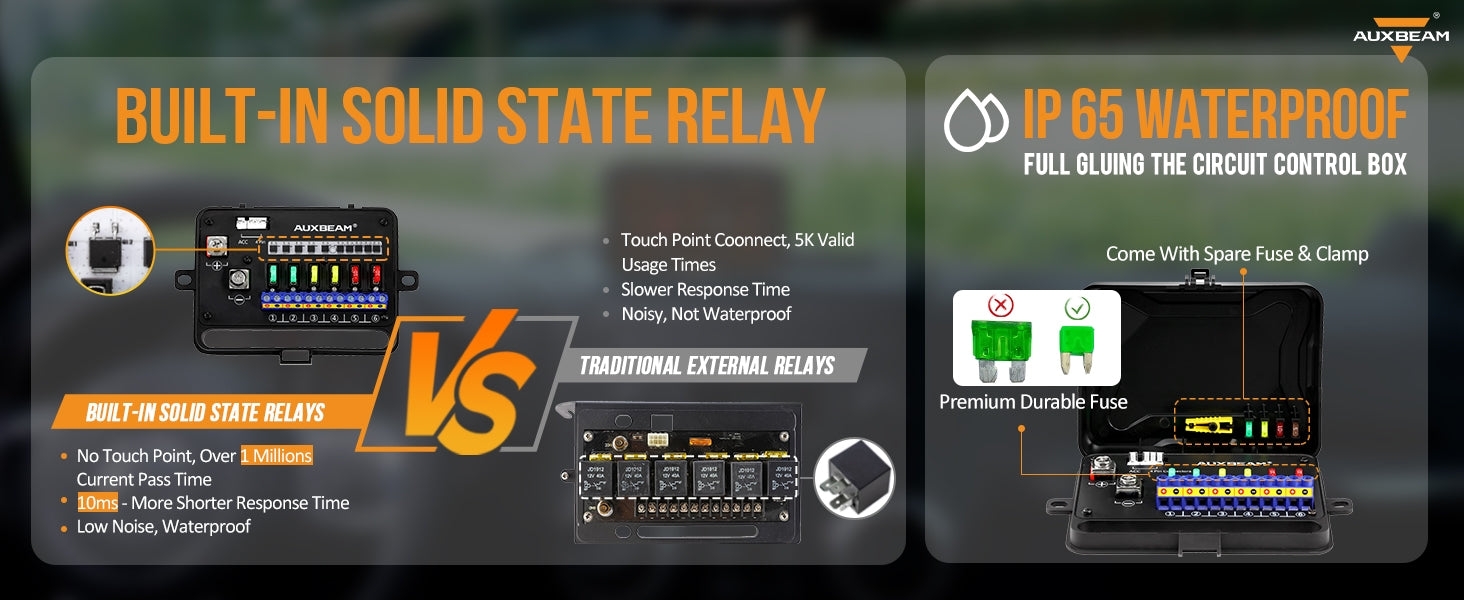

- Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter make it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
- Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
- With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.



-
- Working Voltage: DC 12-24V
- Max Current: 60A
- Rated Voltage: 12V 20A / 24V 10A
- Operating at 12 Volts: Max Power Rating of 720W
- Operating at 24 Volts: Max Power Rating of 1400W
- Switch Operation: On-Off
- Operating Temperature: -40°C - +105°C
- Waterproof Rating: IP65
- Upgraded Functions:
- RGB Backlight - Unlimited color options match dash lighting and vehicle
- 3 Mode Setting - Toggle/Momentary/Pulsed
- Bluetooth APP Control - Access to accessories no matter whether you are in the vehicle

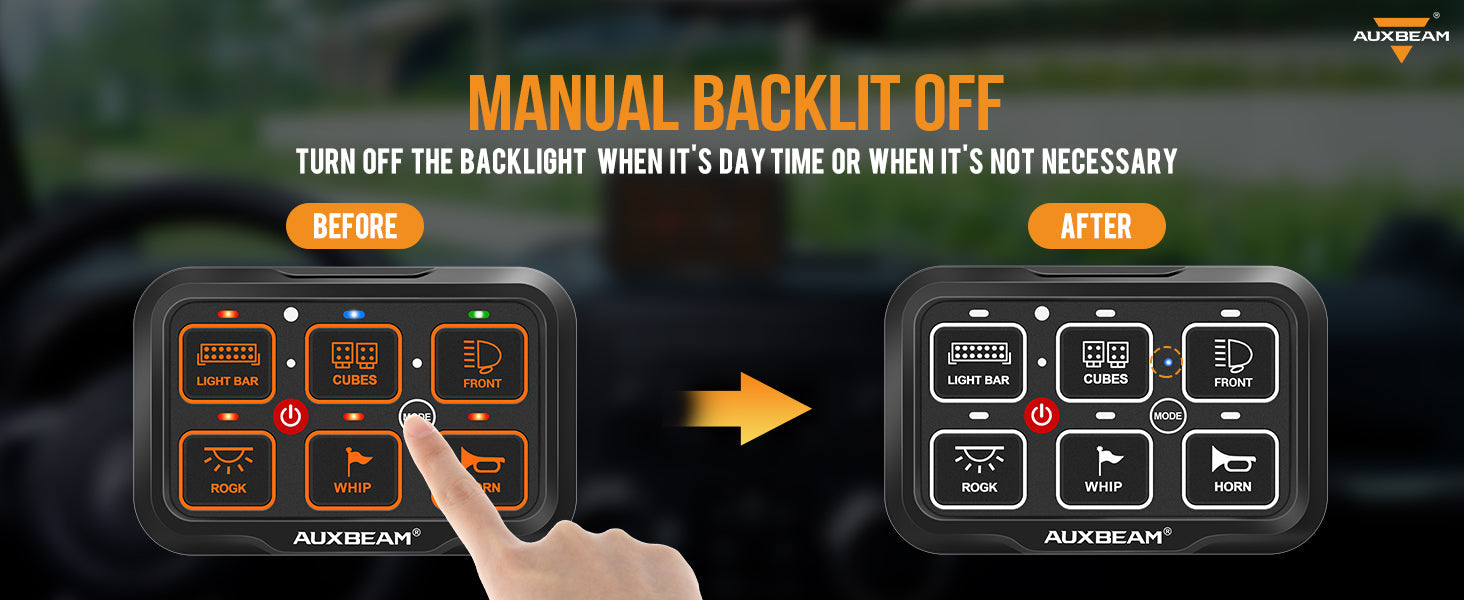

- Manual Backlit Off - Turn off the backlight when it's daytime or when it's not necessary
- Group Setting - Set up a group via APP to control 2 or more lights at the same time
- DIY Switch Panel - 120pcs stickers/ 200 default icons/ phone album photos
-
- 1 Set of 8 Gang RGB Switch Panel (all necessary hardware and wiring harness is included)
- Installation Instructions
- 1*Extension Cable(OPTIONAL)
-
- 3 Modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes (RED, BLUE and GREEN).
- Bluetooth APP control, Access to accessories no matter whether you are in the vehicle
- Group setting, set up a group via APP to control 2 or more lights at the same time.
- Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
- Customize your own switch panel with 60 universal stickers. Use the provided switch labels to indicate what’s connected to that switch.
- Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
- Waterproof IP65, high sensitivity, stability and strong anti-interference ability
- Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
- With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.
- Difference: The AR-600 has a 1-inch button, which is larger than the normal model. It has one more mode button than the AR-800, which allows you to quickly turn off the backlight.





-
- Circuit Type: 6-Way
- Panel Size: Normal 4.5"x3"
- Backlight Color: RGB
- Function: Toggle Momentary Pulsed
- Automatic Dimmable: Yes
- Circuit Control: 1-Sided Outlet
- Max Current: 60A
- Working Voltage: DC 12-24V
- Total Power: 720-1400W
-
- 1 x Switch Panel (all necessary hardware and wiring harness is included)
- 1 x Installation Instructions
