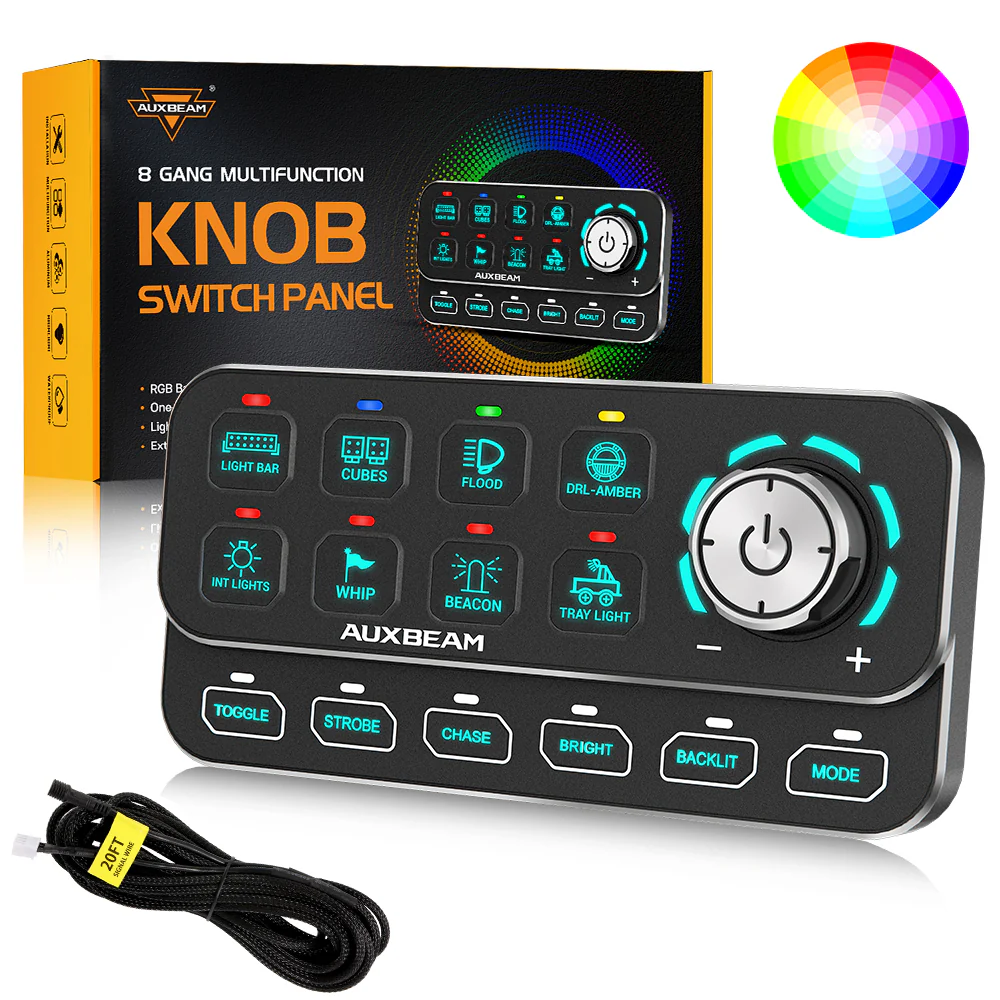

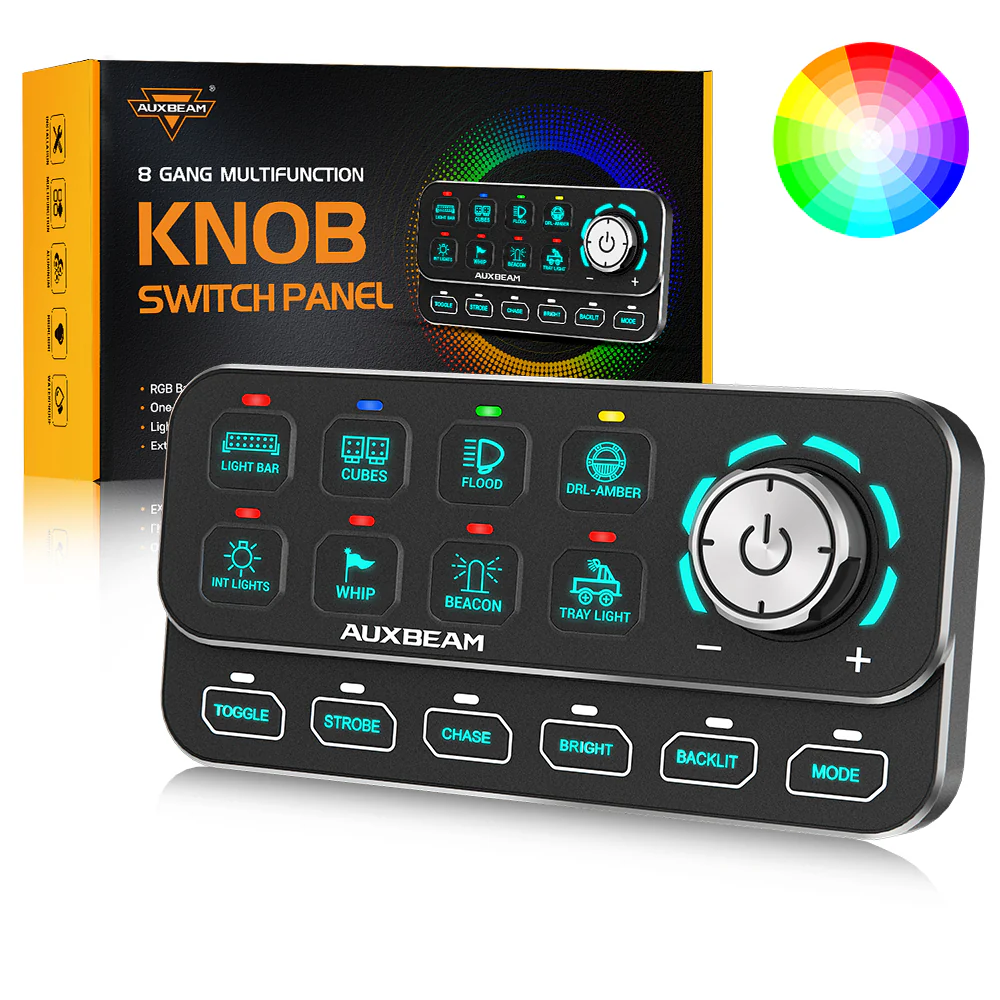

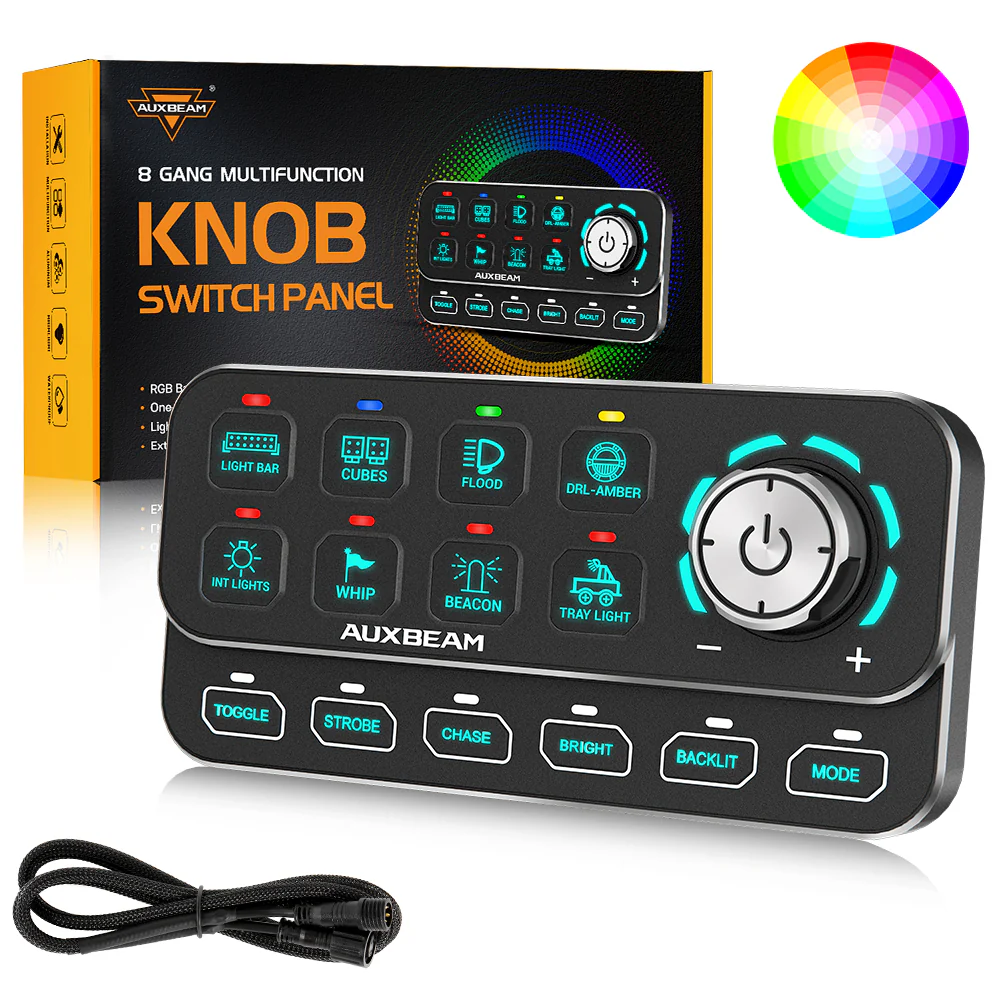

Auxbeam KS-80 RGB Knob Switch Panel 120A with 4 Modes
SKU:
QP012186: In stock
Regular price Rs 39,999.00
-
- 120A All-Solid-State Load System: Features a 3×30A + 4×20A + 1×10A output configuration , offering a total capacity of 120A.Built with high-performance solid-state relays, it ensures safe and reliable operation even at full load.
- One-Touch All Lights Sync(Toggle/Strobe/Chase): Need instant full lighting in an emergency? Simply press the "Toggle" button, and all 8 connected devices will simultaneously activate in constant-on mode. Facing an emergency or needing powerful visual alerts? Tap the dedicated "Strobe" button, and all connected devices will immediately switch to high-visibility strobe mode. Want personalized lighting effects? Press the "Chase" button to flexibly configure 2 to 8 devices for dynamic chasing light effects.
- Master Dimming: Whether it's precise dimming of individual work lights, synchronized management of multiple lighting systems, or fine control of fan speeds, it handles all with ease.
- Four External Triggers: Enabling seamless automation with your vehicle's factory signals. It syncs with your high beams to enhance specific lighting, activates auxiliary lights in reverse, amplifies brake warnings, and synchronizes all lighting with hazard signals—delivering smarter, safer illumination in every scenario.
- DRL Auto-Start: No Extra Steps Needed. Connect to 0-Terminal, Lights On with ACC Ignition.
- Four Modes: Toggle · Momentary · Pulsed · SOS: Press once for stable constant light, twice for flexible momentary, three times for emergency strobe, and four times for standard SOS. No complicated setup required. Simply remember the intuitive button logic to meet all lighting needs for daily driving, temporary tasks, hazard warnings, and emergency rescues
- Color-Changing Panel, Personalize Your Style: The rotary knob panel features adjustable RGB backlighting, allowing you to switch colors freely and control brightness to your preference. Your vehicle's ambiance is in your hands. Clear visibility and intuitive operation—day or night.

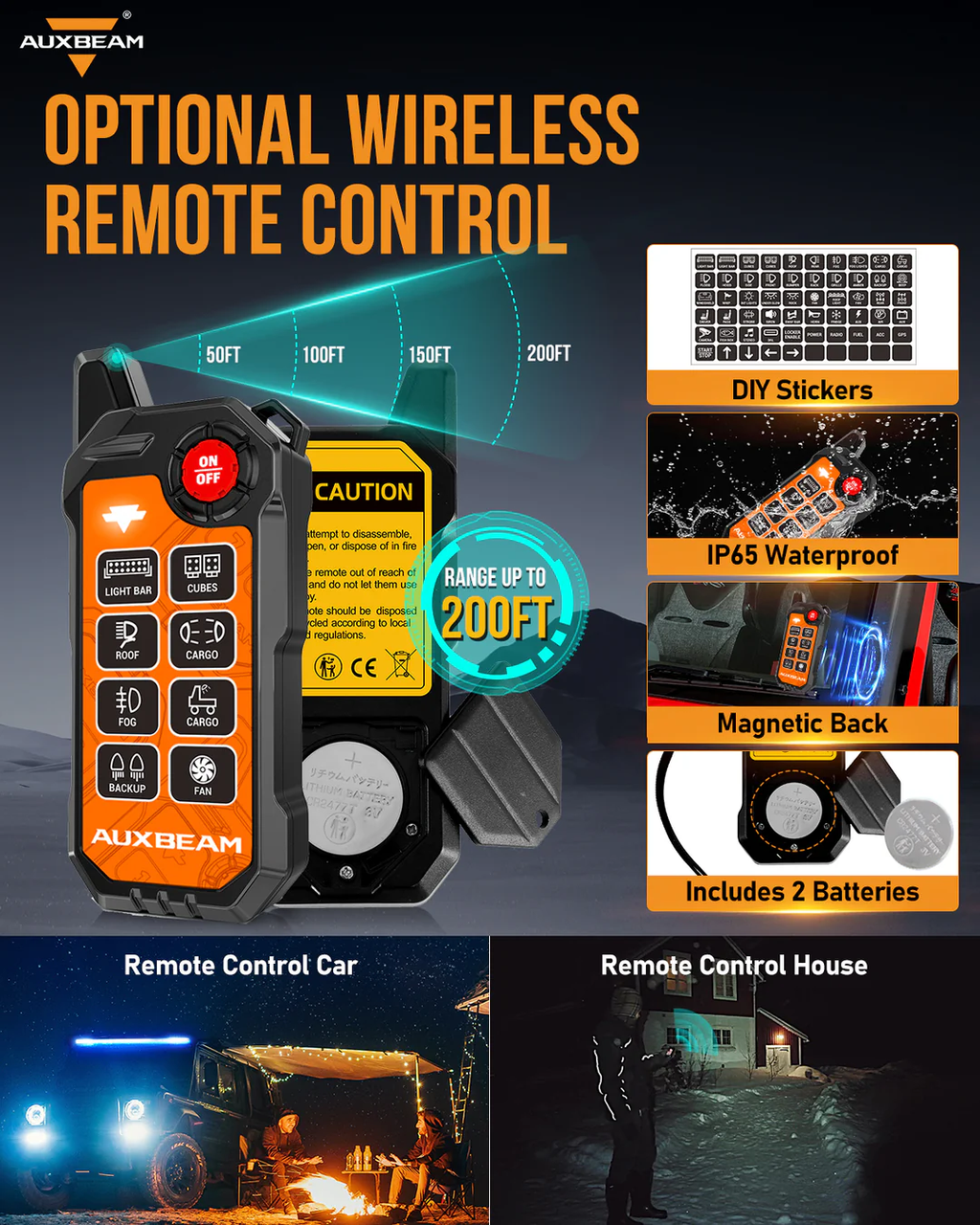

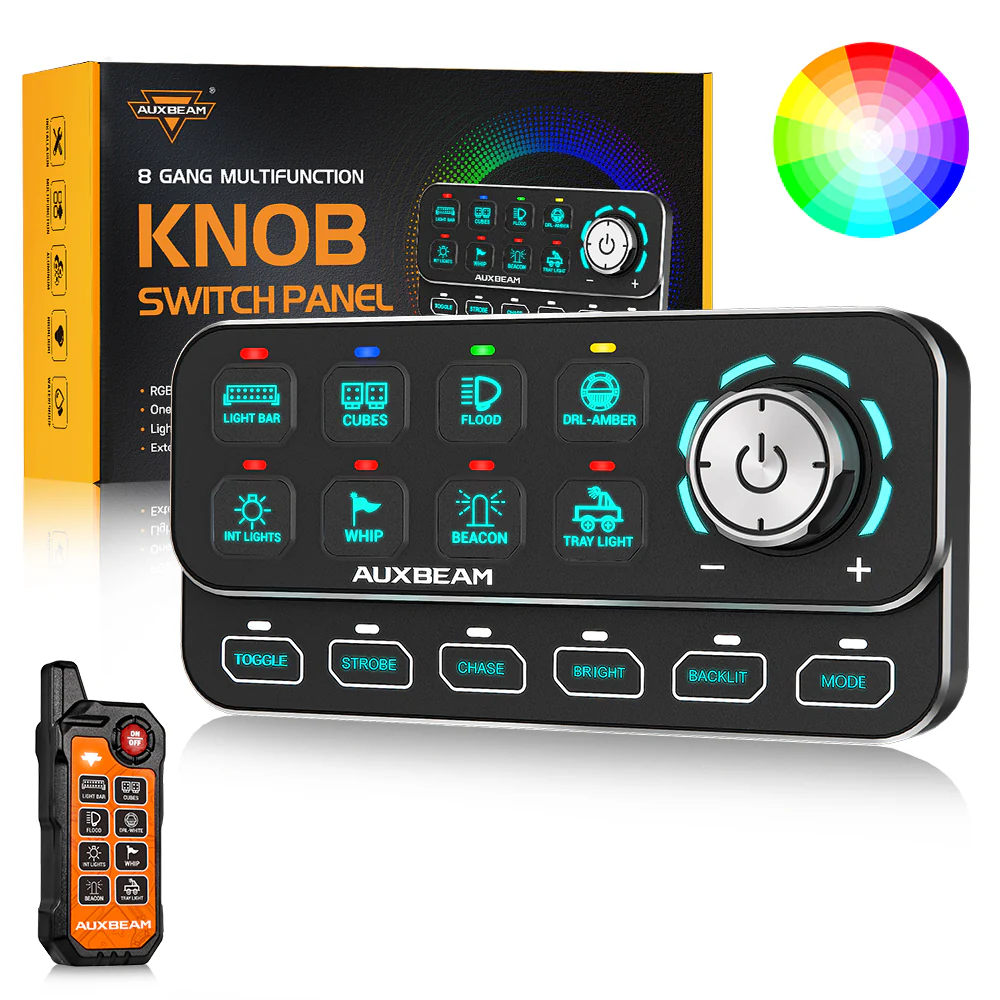

- Optional Wireless Remote: Equip with an optional wireless remote to extend control range up to 200 feet. Ideal for exterior lighting, camp lighting, work command, and more—no need to return to the cabin.
- 3-Year Warranty, Auxbeam’s Quality Promise: The Auxbeam KS-80 switch panel comes with a 3-year official warranty, backed by our professional support team. You’re not just buying a switch panel—you’re getting reliable, worry-free support throughout its life cycle.
-

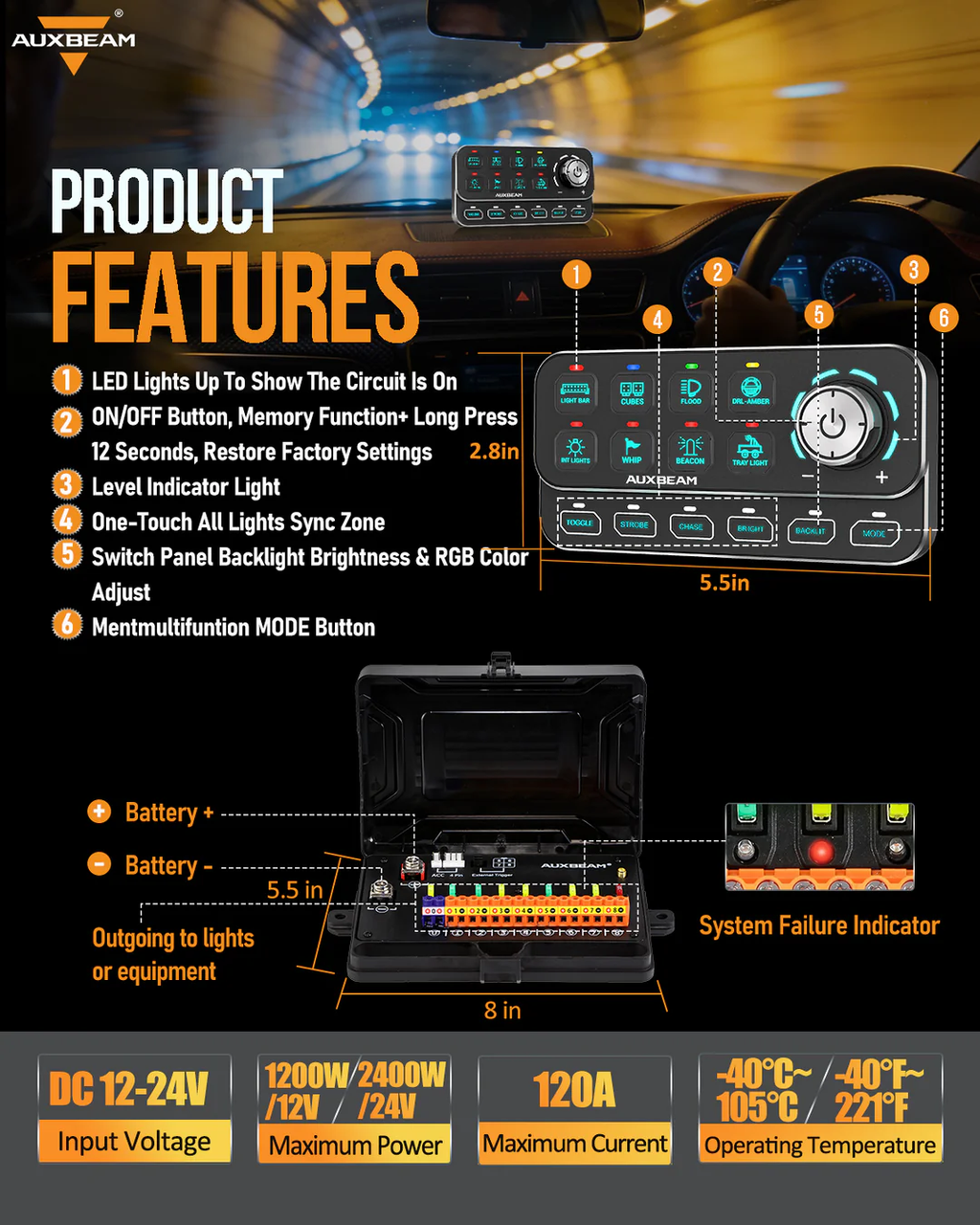

- Voltage Input: DC 12-24V
- Max Current: 120A
- Rated Current: 100A
- Rated Voltage: 12V 20A / 24V 10A
- Max Power: 1200W/12V, 2400W/24V
- Waterproof Rating: IP65
- Operating Temperature: -40°C ~105℃/-40℉~221℉
-

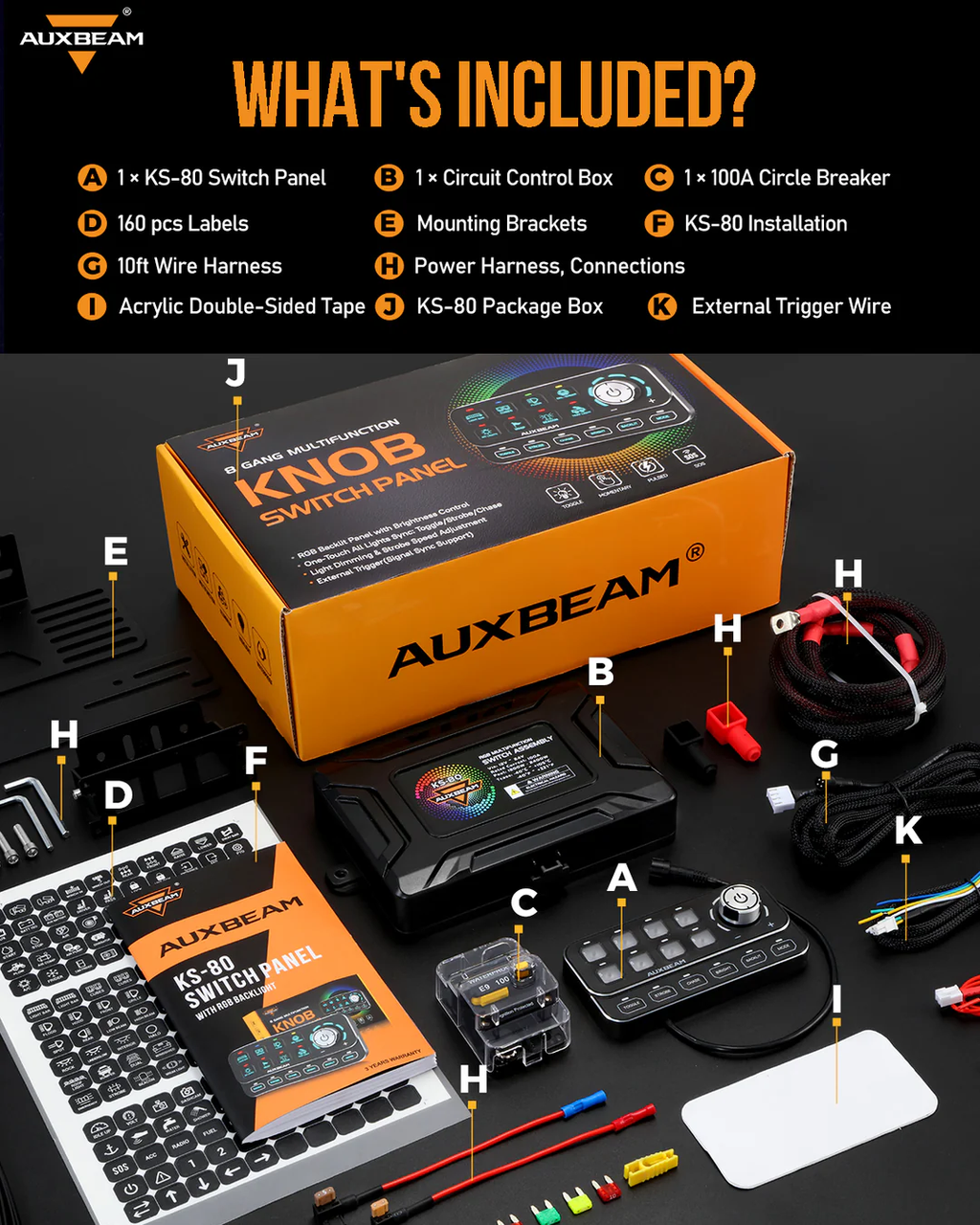

- 1 x KS-80 Knob Switch Panel Set
- 1 x Remote Controller (OPTIONAL)
- 1 x 3.94FT Extension Cable (OPTIONAL)
- 1 x 20FT Extension Cable(OPTIONAL)
