SKU:

QP011205

: In stock

Regular price Rs 26,999.00

By Series
files/Auxbeam_Payment_banner.jpg
MAIN FEATURES

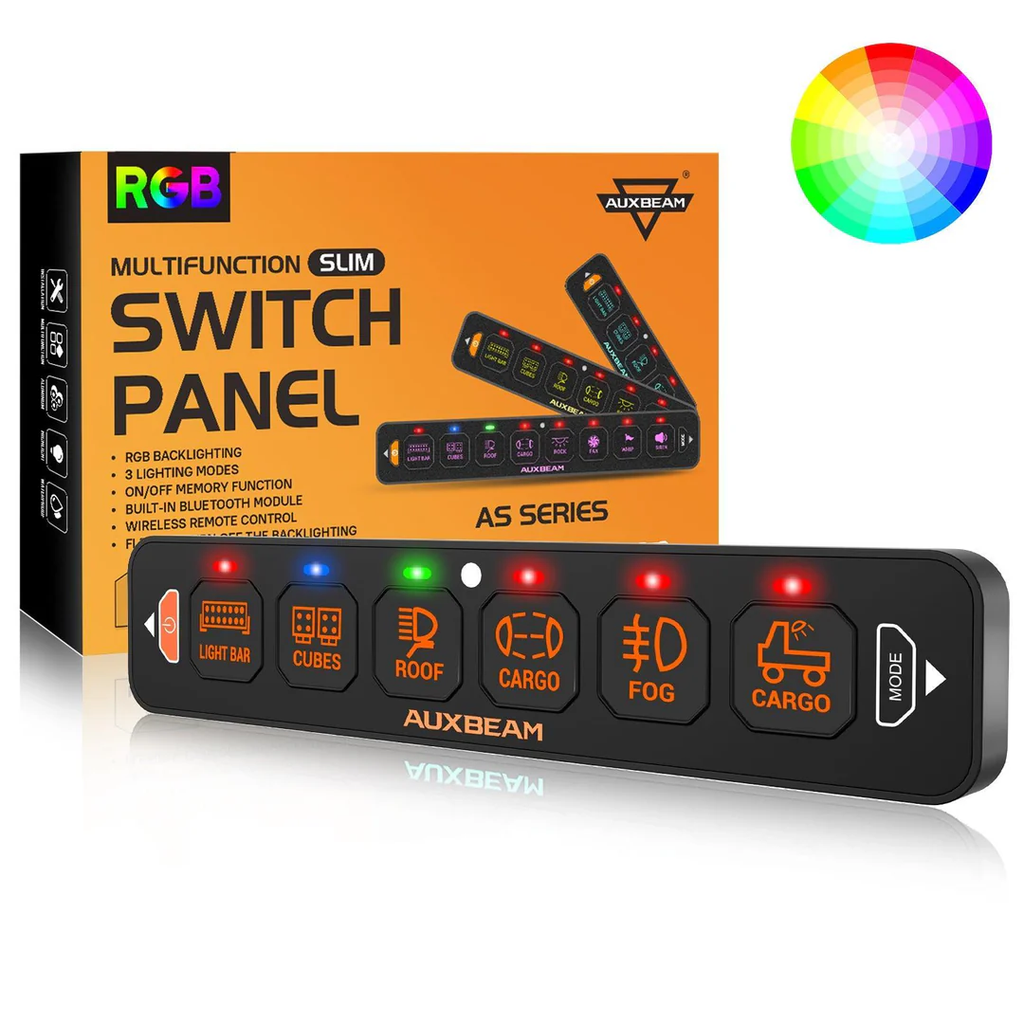

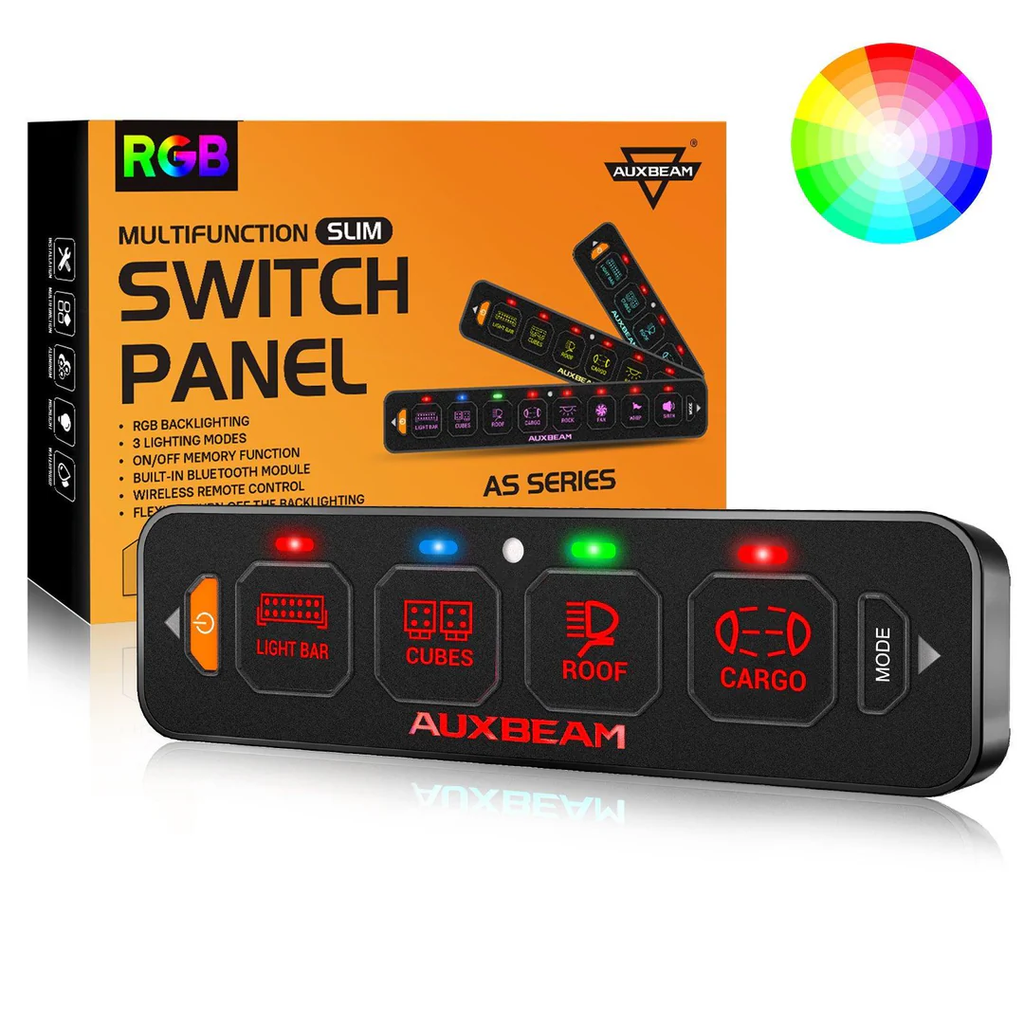

    • 4/6-Gang one-sided outlet switch panel. It allows you to control up to 4/6 different LED lights or devices. Command all your vehicle accessories by the tap of your finger.
    • 3 control methods - Switch panel & Bluetooth APP&Remote Control, work synchronously. Built-in Bluetooth module allows you to program and control the system anytime & anywhere.The wireless remote control has a connection range of up to 165ft/50m.
    • 3 modes setting. Each switch has 3 kinds of light status, different indicator status represents different working modes (RED, BLUE and GREEN).
    • RGB backlight color. Adjust backlight color and brightness to match your vehicle.
    • Backlight brightness automatic dimmable. Automatic adjustment according to the brightness variation of the environment.
    • Assign each switch a logo (60 universal stickers to choose from). Use the provided switch labels to indicate what’s connected to that switch.
    • DIY button icon on APP. 200 default icons or use your own photos from the phone album.
    • Setup group. Manage multiple accessories in your custom groups. Assign 2 or more accessories to the same switch button and then control them at the same time.
    • Universal fitment. Widely use for Truck, Boat, Car, Bus, Off-road, Powersports, Marine, ATV, UTV, SUV, Side by Side, SxS, Heavy-duty machines, etc.
    • Waterproof IP65, high sensitivity, stability and strong anti-interference ability.
    • Safety protection. Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection. The fuse adapter makes it easy to connect the control box to the vehicle's fuse box without cutting, splicing or damaging the original wiring in the vehicle.
    • Easy Installation. No complicated wiring, no need to cut a big hole in your vehicle. Plug & play wiring harness can connect the LED lights or accessories easily.
    • With 2 types of mounting brackets, you can mount the panel in the best location for your vehicle, such as the dash panel, center console, overhead sunglasses holder, etc.
Specification
    • Working voltage: DC 12-24V
    • Max current: 60A
    • Rated voltage: 12V 20A / 24V 10A
    • Operating at 12 Volts: max power rating of 720W
    • Operating at 24 Volts: max power rating of 1400W
    • Switch operation: On-Off
    • Operating temperature: -40°C - +105°C
    • Waterproof rating: IP65
PACKAGE INCLUDED
    • 1 Set of 4/6 Gang RGB Switch Panel (all necessary hardware and wiring harness is included)
    • Installation Instructions
Upgraded Functions:
    • RGB Backlight - Unlimited color options match dash lighting and vehicle
    • 3 Mode Setting - Toggle/Momentary/Pulsed
    • Bluetooth APP Control - Access to accessories no matter whether you are in the vehicle
    • Upgraded Wireless Remote Control - Equipped with a strong magnet, allowing it to be easily adsorbed onto iron metal surfaces, making it very convenient to use. Includes two button batteries for easy replacement, with an IP65 waterproof rating
    • Manual Backlit Off - Turn off the backlight when it's daytime or when it's not necessary
    • Group Setting - Set up a group via APP to control 2 or more lights at the same time
    • DIY Switch Panel & Remote Control - Use the provied 60pcs labels to indicate what's connected to that switch& remote control
