Best Switch Panel for Caravan in India (2026 Guide)
Every caravan runs several 12V accessories at once — interior lights, water pump, fridge fan, awning light, USB points. Wiring a separate switch for each one gets messy fast. A single caravan switch panel solves this. Here's how to pick the right one, and where each Auxbeam switch board actually fits.
For most Indian caravans, a 6-gang 12V switch panel is enough to run interior lights, a water pump, and a fan from one board. If your caravan also carries an awning light, fridge fan, USB charging point, or rock lights, step up to an 8-gang or 12-gang caravan switch board. Auxbeam's AC Series and RGB Series cover both cases, and every panel is waterproof and built for continuous 12V (or 12-24V) use — not just occasional switching.
1. What Is a Caravan Switch Panel, and Why Do You Need One?
A caravan switch panel — also called a caravan switch board — is a single 12V control unit with several switches on it, wired to a relay box hidden inside the caravan. Instead of running a dedicated switch and fuse for every accessory, you connect each accessory to one port on the panel and flip its switch from a single spot near the door or dashboard.
This matters more in a caravan than in a regular car, because a caravan usually runs more 12V accessories at the same time: interior lights, an awning light, a water pump, a fridge fan, USB charging ports, and sometimes rock lights or a porch light. Wiring each one separately means more wire runs, more points of failure, and a harder job if something needs fixing on the road. One caravan switch panel keeps all of that in one place.
Auxbeam's switch panels are built on a solid-state relay with over-voltage, reverse polarity, over-current, and thermal-cutoff protection, so the panel itself takes the electrical load instead of your caravan's wiring — this is the same relay tech used across Auxbeam's switch panel range for trucks, UTVs, and off-road builds, just as relevant for a caravan's 12V circuit.

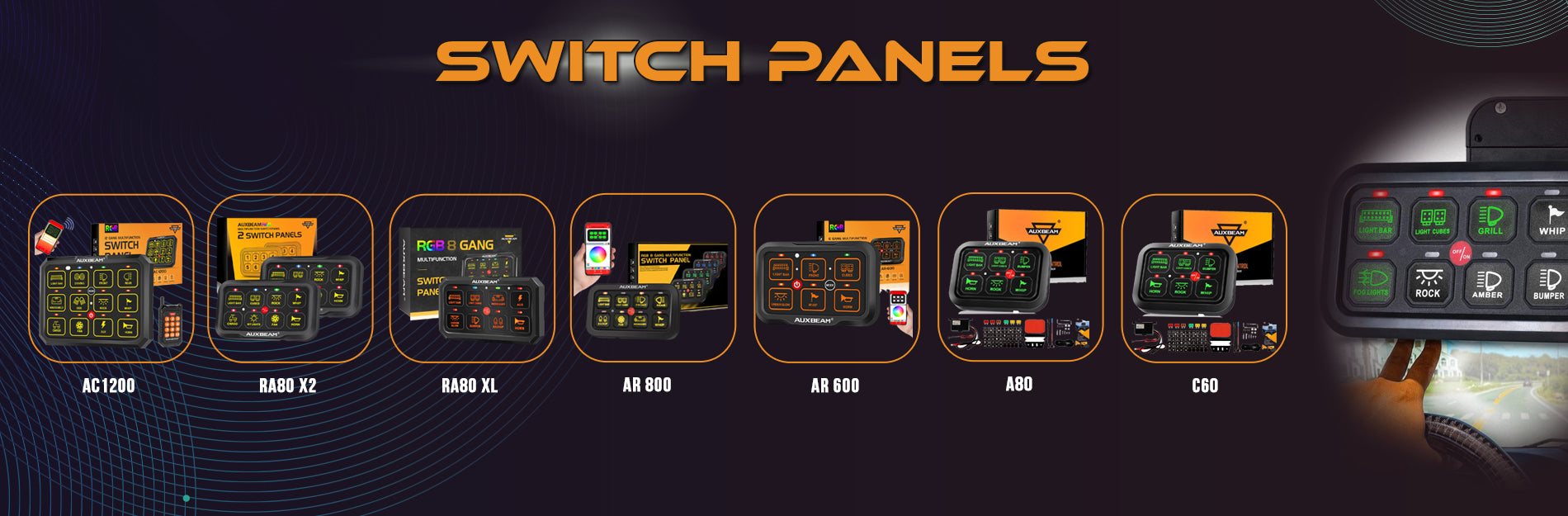

2. Best Auxbeam Switch Panels for Caravan — Comparison Table
Here are the Auxbeam switch panels that suit caravan electrical setups, compared side by side on gang count, control method, and what they're best used for.
RGB Series Switch panel only, no app needed
Comes in 6-gang, 8-gang, and 12-gang versions, so you pick the exact circuit count your caravan needs without paying for extra switches you won't use. Straightforward on/off control, RGB backlighting to find switches in the dark.

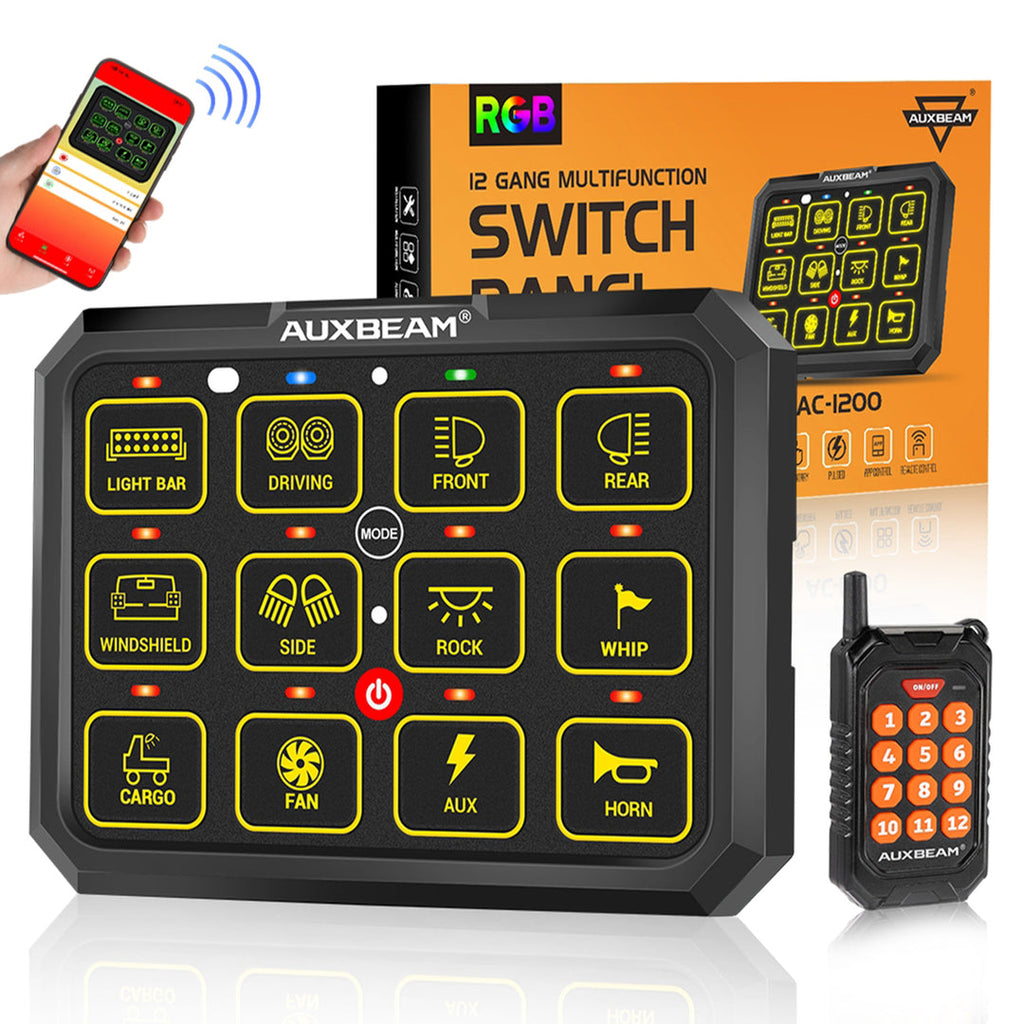

AC Series Remote + app control
Adds a wireless remote and phone app on top of the panel switches, so accessories like the awning light or porch light can be switched from inside the caravan or from outside while setting up camp.

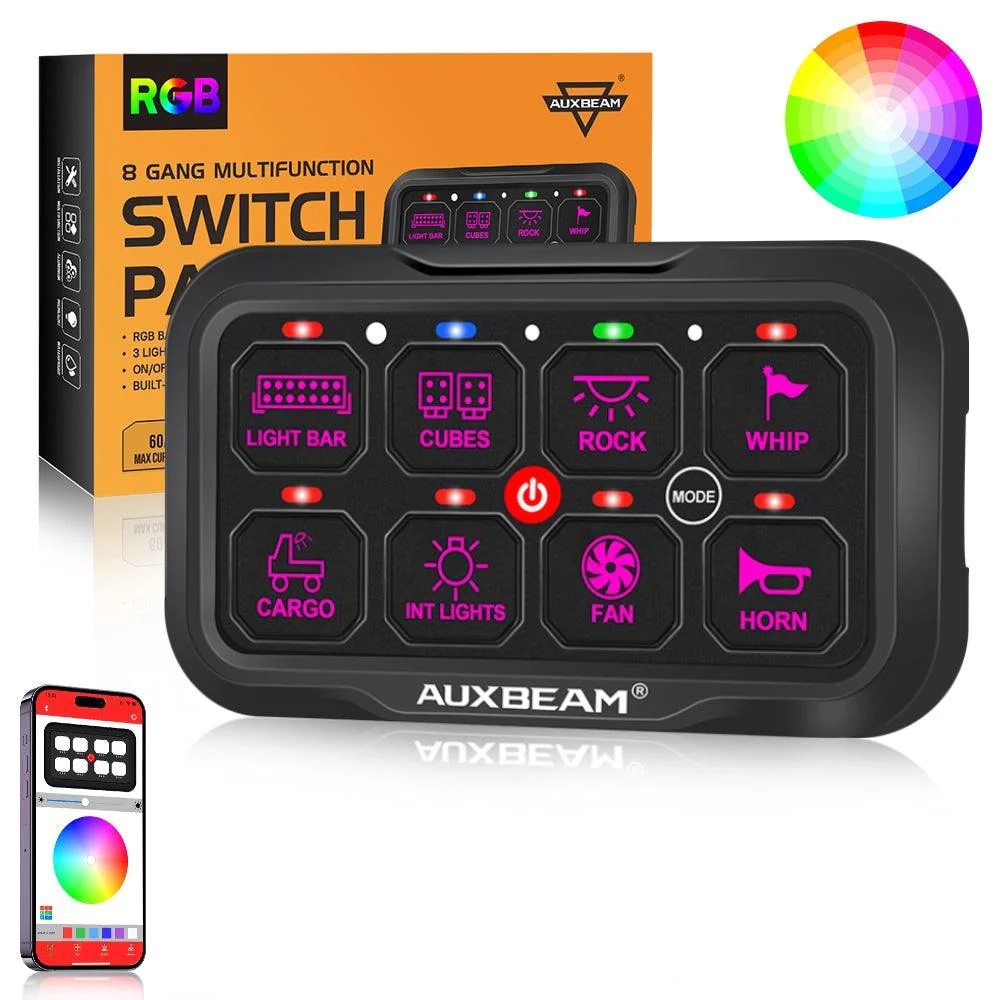

AR SeriesApp control
App-controlled panel without the remote, for owners who are happy managing everything from a phone and want to keep the setup simple.
| Switch Panel | Gang Count | Control Method | Best Suited For |
|---|---|---|---|
| RGB Series | 6 / 8 / 12 Gang | Panel only | Small to mid-size caravans, budget-friendly setups |
| AC Series | 8 / 12 Gang | Panel + Remote + App | Touring caravans, awning/porch light convenience |
| AR Series | 8 Gang | Panel + App | Owners who prefer phone-only control |
| XL Series | 8 Gang | Panel only, larger buttons | Caravans needing bigger, easy-to-press switches |
| AS Series | 8 Gang | Panel only | Straightforward multi-accessory caravan wiring |
Gang count and price vary by series — check the current specification on each product page before ordering.
XL Series Larger, easy-press switches
Same 8-gang layout as the AS Series, built with a larger button size so switches are easier to find and press without looking, useful near a caravan entry door at night.

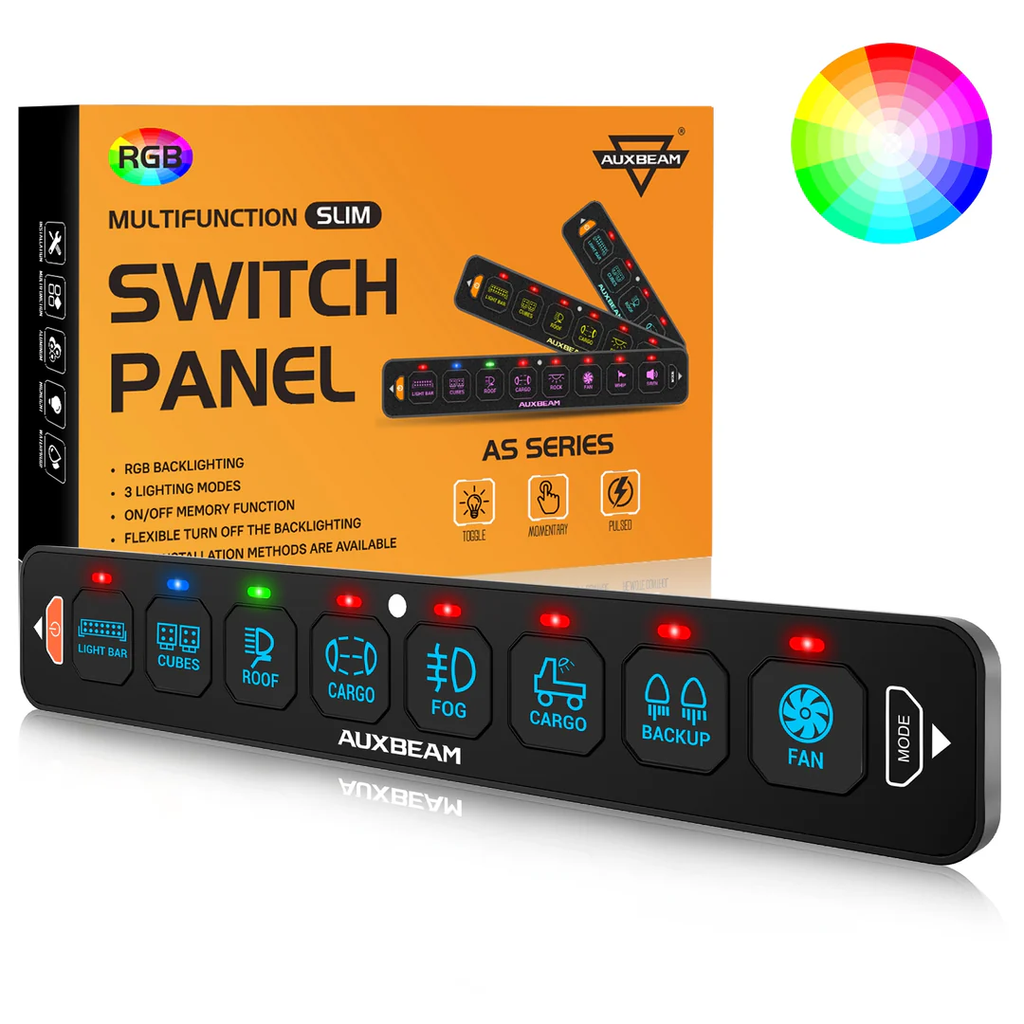

AS Series Straightforward panel-only control
A no-frills 8-gang caravan switch board for owners who just want reliable on/off switching for every accessory without a remote or app to set up.
3. Which Caravan Setup Needs Which Panel
The right caravan switch board depends on how many accessories you're actually running, not just how big the caravan is.
- Basic caravan (lights + water pump + fan): a 6-gang RGB Series panel covers this with room to spare.
- Mid-size caravan (add awning light + fridge fan + USB point): step up to an 8-gang panel — AC Series, AR Series, XL Series, or AS Series all work here.
- Large caravan or motorhome conversion (rock lights, exterior lighting, multiple pumps): a 12-gang RGB Series panel, or two linked 8-gang panels, keeps every circuit on its own switch.
- Caravan used for touring and overnight camping: the remote and app control on the AC Series is genuinely useful here — switching the awning light on from outside the caravan, or the porch light on before you've even opened the door, saves a trip back inside.
4. What to Check Before Buying a Caravan 12V Switch Panel
A caravan switch panel deals with more current and more accessories than a car's, so a few checks matter more here.
12V or 12-24V rated
Most caravans run a 12V deep-cycle battery. Auxbeam panels are built for 12-24V, so the same board works even if your setup steps up to 24V later.
IP65 or higher
A caravan sits outdoors and gets washed regularly, so a sealed, waterproof panel matters even when it's mounted inside a cabinet.
Count your accessories first
List every 12V accessory you'll run, then pick a panel with at least that many circuits — plus one spare for whatever gets added later.
Over-current & reverse polarity
A solid-state relay with over-voltage, over-current, reverse polarity, and thermal-cutoff protection keeps a wiring mistake from becoming a bigger problem.
5. Which One Should You Actually Buy?
Match the panel to your accessory count and how hands-on you want the control to be.
- Just need reliable on/off switching: go with the RGB Series in the gang count that matches your accessory list.
- Want remote and app convenience for touring: the AC Series is built for exactly this.
- Prefer phone-only control, no remote: the AR Series does the job without extra hardware.
- Want larger, easier-to-press switches: the XL Series is built with a bigger button layout.
6. Frequently Asked Questions
Q: What is a caravan switch panel used for?
A caravan switch panel is a single 12V control board that lets you turn on and off multiple caravan accessories — interior lights, water pump, fridge fan, awning light, USB sockets — from one place instead of wiring a separate switch for each one.
Q: How many gangs (circuits) do I need for my caravan?
Most small to mid-size caravans run comfortably on a 6-gang switch panel. Larger caravans or motorhomes with more accessories such as awning lights, water pumps, fridge fans, and USB points usually need an 8-gang or 12-gang panel so every circuit gets its own switch.
Q: Is a caravan switch panel the same as a caravan switch board?
Yes. These are two names for the same product. A caravan switch board and a caravan switch panel both refer to a single 12V (or 12-24V) control unit with multiple switches wired to a relay box, used to manage caravan accessories from one panel.
Q: Can a caravan switch panel run on 12V only, or does it need 24V?
Most caravan setups in India run on a 12V deep-cycle battery, and a 12V switch panel is all that's needed. Auxbeam switch panels are built for 12-24V input, so the same panel also works if your caravan happens to run a 24V electrical system.
Q: Do I need a waterproof switch panel for a caravan?
Yes. A caravan sits outdoors, gets washed, and is exposed to monsoon rain and dust on longer trips, so an IP65 or higher rated switch panel is worth choosing even if it's mounted inside a cabinet, since moisture still finds its way in over time.
🏁 Final Verdict
A caravan switch panel isn't an upgrade — once you're running more than two or three 12V accessories, it's the simplest way to keep the wiring manageable and every switch within reach.
6-Gang
Lights, pump, fan. Covers most small caravans without extra cost.
8-Gang
Adds awning light, fridge fan, USB point. The most common caravan choice.
12-Gang
Full accessory setups — rock lights, exterior lighting, multiple pumps.
Pick the gang count that matches your accessory list, not the caravan's size on paper. Auxbeam India's switch panel range covers 6, 8, and 12-gang options with panel-only, remote, and app control — all built on a waterproof, solid-state relay so the caravan switch board holds up trip after trip.
