Introduction

Now that you've switched to LED headlights, which are brighter and more efficient, one of them has gone dark, or perhaps it's flickering randomly. It's an annoying and possibly dangerous situation. Know that the problem can sometimes be easier than you might think before assuming the lightbulb is dead or going to the mechanic.

The most common causes of LED headlight not working will be covered in this guide, along with simple, step-by-step instructions for restoring your lights' brightness.

Why Are My LED Headlights Not Working? Common Causes

LED headlights are advanced electronic components as instead of traditional halogen bulbs. Their failure is typically caused by one of the following specific factors and is rarely random:

  • Compatibility & CanBus Errors: Modern vehicles use a complex computer network called a CanBus (Controller Area Network). It monitors all electrical circuits, including your headlights. Standard halogen bulbs have a specific resistance that the car's system expects. LED bulbs draw significantly less power. The car's computer interprets this low power draw as a "blown bulb" and may shut off power entirely, causing the LED not to work or to flicker.
  • Bad Wiring or Ground Connection: One of the main suspects is loose, corroded, or damaged wiring. Poor ground connections are particularly prevalent. To finish its circuit, the LED requires a clear, safe route to the car's chassis. Flickering, dimming, or total failure may result from a bad ground.
  • Headlight Circuit Problem (Blown Fuse or Relay): Even though LEDs draw less power, they are still protected by the vehicle's fuses and relays. A power surge or fault can blow the fuse specific to the headlight circuit. Always check your vehicle's fuse box first; it's the easiest and cheapest fix.
  • Failed Bulb or Ballast Failure: Although less frequent with high-quality brands, the LED chip or its integrated driver—the part that controls power—may malfunction.
  • Incorrect Installation: It sounds simple, but sometimes the bulb isn't fully seated in the connector or housing. Double-check that all connections are snug and secure.

How to Solve The Problem of LED Headlight Bulb?

Let's go over the solutions now that we are aware of the possible causes. Before doing any checks, make sure your car is off and the keys are out of the ignition.

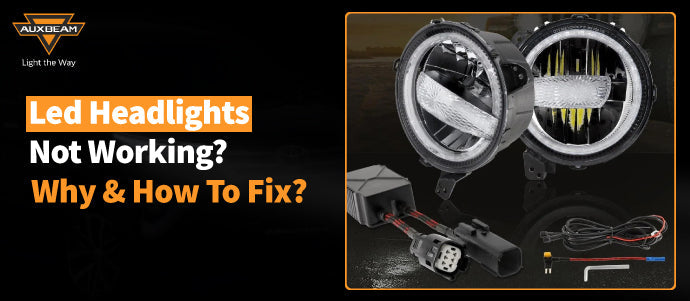

Step 1: Buy Auxbeam 9 Inch LED Headlight with Halo ring

9 Inch 120W 9000 Lumens LED Headlights With Halo Ring DRL - AUXBEAM INDIA

Choosing a Auxbeam LED headlight made for today's vehicles is frequently the most trustworthy solution. The Auxbeam LED Headlight, for example, is designed with integrated compatibility features that help avoid these typical mistakes, providing a more seamless and integrated solution.

Step 2: The Basic Checks

  • Check the installation: The LED bulb should be unplugged and then firmly replugged into its power connector. Make sure the headlight housing is properly seated.
  • Examine the fuse: Find the fuse box in your car by consulting the owner's manual. Locate the fuse (usually labeled) for the high beam or low beam circuit. Examine the metal strip inside after removing it. Replace it with a fuse with the exact same amperage rating if it's broken.

Step 3: Address the Core Compatibility Issue

If the basics check out, the problem is almost certainly compatibility. Here are the proven solutions:

  • Use an LED Decoder/Error Code Eliminator: This is the most common and effective fix. A decoder tricks the car's computer into thinking a regular halogen bulb is still installed by simulating its power draw.
  • Put load resistors in place: To increase the power draw to a level that the car's computer expects, resistors are wired into the circuit to create an artificial load. A warning: resistors must be mounted on a metal surface in order to safely dissipate heat because they become extremely hot while operating.

What If Only My LED Low Beam Is Not Working?

If your LED low beam is not working but the high beam on the same side functions, the problem is isolated to the low beam circuit.

  • First, check the low beam fuse specifically.
  • Second, swap the LED bulb from the non-working low beam to the high beam socket. If it works in the high beam socket, you know the bulb is good and the issue is with the car's low beam wiring or socket.
  • The fix will almost certainly require a CanBus decoder installed on the low beam circuit.

What If Only My LED High Beam Is Not Working?

A non-working LED high beam is less common but follows the same logic.

  • Check the high beam fuse and the relay that controls it.
  • Try swapping the high beam bulb with the low beam bulb to test the bulb itself.
  • Since high beams are used intermittently, compatibility issues can still arise. Installing a dedicated decoder on the high beam circuit will typically resolve the issue.

Conclusion: Don't Drive in the Dark

An LED headlight that isn't working is almost always a solvable problem. Start with the simple checks—fuses and connections. In most cases, the ultimate fix will involve a compatibility solution like a CanBus decoder or anti-flicker harness.

By understanding the "why" behind the failure, you can confidently apply the correct "how" to fix it and get back to enjoying a brighter, safer drive.

Drive bright, drive safe.

(Disclaimer: Always follow local road safety laws regarding headlight modifications. This guide is for informational purposes. If you are unsure about any electrical work, consult a professional mechanic.)
